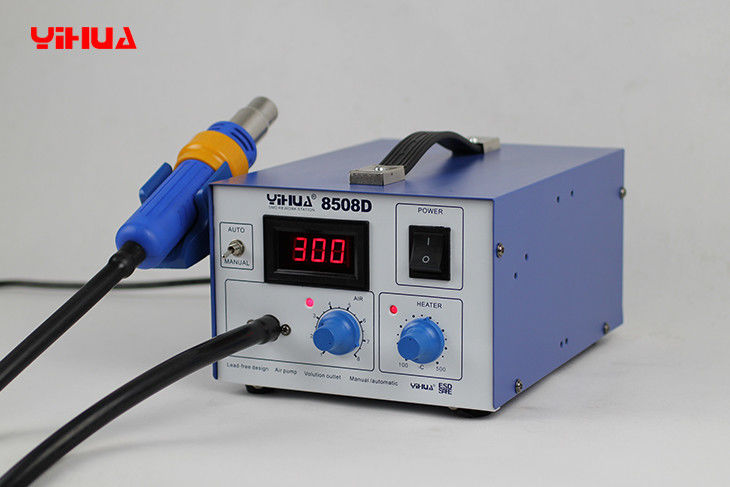

IC / PCB Hot-Air Soldering Station , Manual / Auto Soldering Station
Are add new feature for manual and auto transform
Put the key to AUTO When you put the gun on the holder over 2 minute , that the gun will enter into standby mode.
Put the key to MANUAL When you put the gun on the holder , that the gun still work along
IC / PCB Hot-Air Soldering Station , Manual / Auto Soldering Station Main Function
1. YIHUA8508D hot air SMD rework station chip used SAMSUNG microcomputer control,warming-up quickly.
2. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.
3. Adjust the air flow and temperature control rotation.
4. Refer to the instructions included with three kinds of nozzles ( big , medium and small) replacement part.
5. Would replace the part if the resistance value is incorrect.
6. When the temperature is less than 80oC , can stop rotation automatically.
7. Intelligent detection and cool airflow features.
8. Green lines and high-quality silicone body heat good for extend life and save power.
9. Comfortable portable handheld and the Digital LED display.
IC / PCB Hot-Air Soldering Station , Manual / Auto Soldering Station Technical Data
Power consumption 700W
GunTemperature range 100-480°C
Gun heater material Nickel-alloys
Gun heater resistance 90Ω
Gun type Diaphragm pump
Air flow 28L / min
Inner box Dimension(cm) 32*27*19.8
Outer box Dimension(cm) 56*34*60
QTY 6pcs / carton
Goods weight 3.6kg / pcs
g.w. 21.6kg / outer
What difference for brushless fan and diaphragm pump?
diaphragm pump the air are focus , airflow are 24~28L / min. brushless fan the air are soft , airflow are 120L/min.
Remark
Specifications and design subject to change without notice
What's In The Box
* main unit + gun + power cord
* guide
* 3 nozzles
* 1pcs IC pick -up
These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V / 240V units
